| Brand Name: | BAXIT |
|---|---|
| Model Number: | BXT-25ML |
| Minimum Order Quantity: | 1 |
| Price: | USD 38~579 per Unit |
| Delivery Time: | 5-8 days |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 999999 per day |
| Model: | BXT-25ML | Kettle Body Material: | 304 Stainless Steel |
|---|---|---|---|
| Lining Material: | PTFE/PPL | Lining Specifications: | 33*61MM |
| Lining Capacity: | 25ML | Strengthening Rod Specifications: | 8*200MM |
| Maximum Pressure: | ≤3Mpa | PTFE Maximum Temperature: | ≤220°C |
| PPL Maximum Temperature: | ≤260°C | Heating And Cooling Rate: | ≤5°C/Min |
| High Light: | Polytetrafluorolined Hydrothermal Synthesis Reactor,PTFE Hydrothermal Synthesis Reactor,Polytetrafluorolined Digestion Tank Hydrothermal Synthesis Reactor |
||

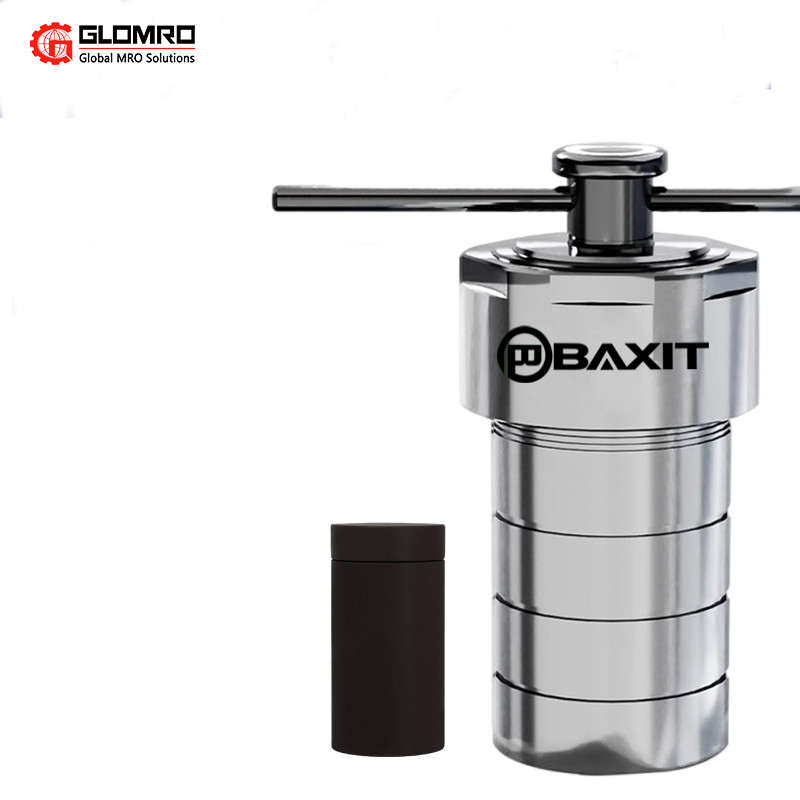

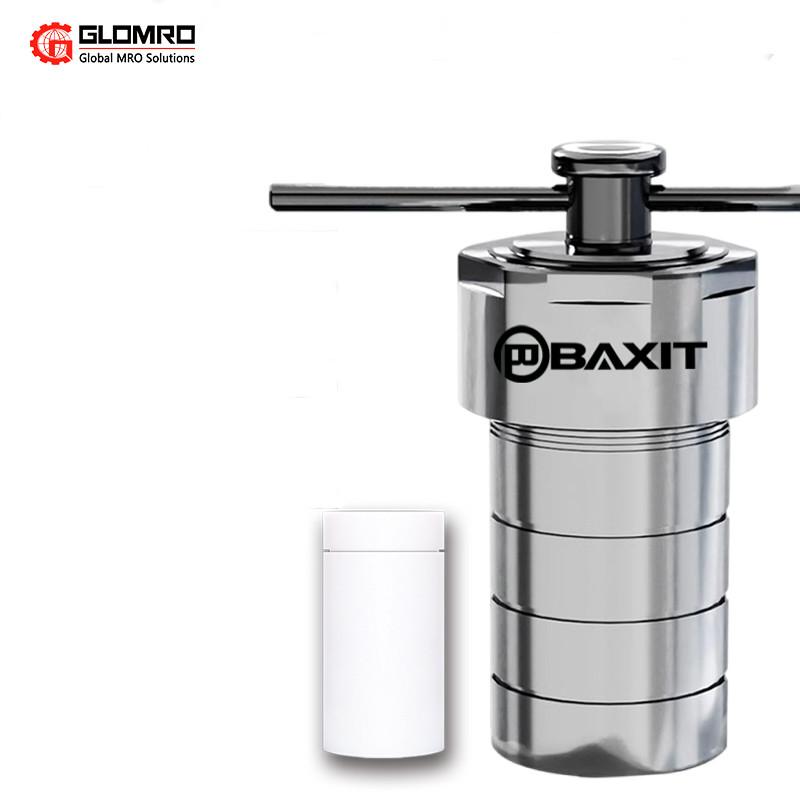

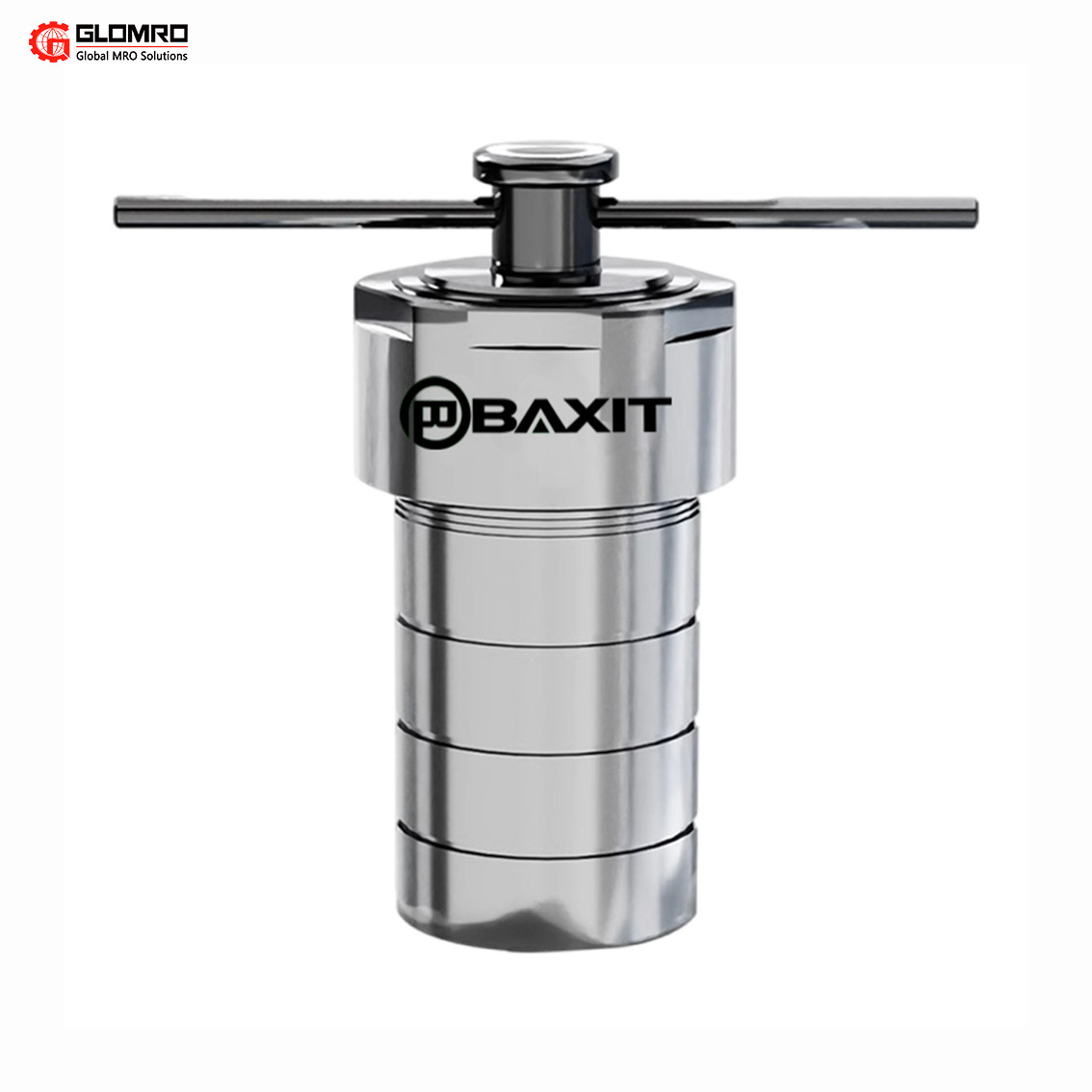

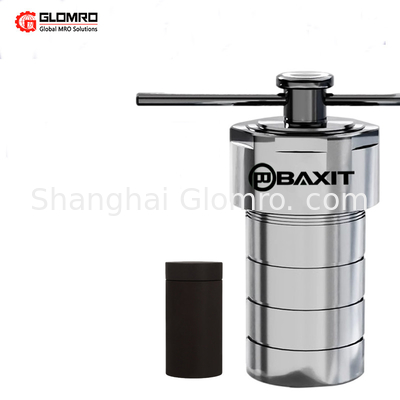

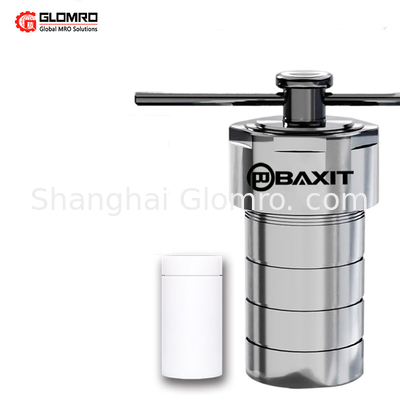

BAXIT Hydrothermal Synthesis Reactor
Thickened Stainless Steel PTFE Hydrothermal Synthesis Reactor 10/50/500ml Polytetrafluorolined Digestion Tank
Product Parameters
| Model | BXT-25ML | BXT-50ML | BXT-100ML | BXT-150ML | BXT-200ML |
| Kettle body material | 304 Stainless Steel | ||||
| Lining material | PTFE/PPL | ||||
| Lining specifications | 33*61MM | 40*78MM | 49*95MM | 58*114MM | 63*135MM |
| Lining capacity | 25ML | 50ML | 100ML | 150ML | 200ML |
| Strengthening rod specifications |
8*200MM | ||||
| Pressing method | Threaded screw cap compression, manual tightening | ||||
| Maximum pressure | ≤3Mpa | ||||
| PTFE maximum temperature | ≤220°C | ||||
| PPL maximum temperature | ≤260°C | ||||
| Heating and cooling rate | ≤5°C/Min | ||||
| Net weight | 1.02KG | 1.65KG | 2.4KG | 4.8KG | 6.1KG |
| Dimensions | 53*117MM | 65*139MM | 75*160MM | 97*185MM | 107*205MM |
| Model | BXT-250ML | BXT-300ML | BXT-400ML | BXT-500ML | BXT-1000ML |
| Kettle body material | 304 Stainless Steel | ||||
| Lining material | PTFE/PPL | ||||
| Lining specifications | 65*135MM | 71*138MM | 81*138MM | 94*138MM | 120*152MM |
| Lining capacity | 250ML | 300ML | 400ML | 500ML | 1000ML |
| Strengthening rod specifications |
8*200MM | no need | |||
| Pressing method | Threaded screw cap compression | Bolt tightening | |||
| Maximum pressure | ≤3Mpa | ≤6Mpa | |||
| PTFE maximum temperature | ≤220°C | ≤240°C | |||
| PPL maximum temperature | ≤260°C | ||||
| Heating and cooling rate | ≤5°C/Min | ||||
| Net weight | 6.1KG | 6.7KG | 8.1KG | 10.6KG | 23.5KG |
| Dimensions | 107*205MM | 110*210MM | 120*215MM | 135*215MM | 202*220MM |
| Model | BXT-EX-30ML | BXT-EX-50ML | BXT-EX-100ML | ||
| Kettle body material | 304 Stainless Steel | ||||
| Lining material | PTFE/PPL | ||||
| Lining specifications | 45*58MM | 45*75MM | 50*85MM | ||
| Lining capacity | 30ML | 50ML | 100ML | ||
| Strengthening rod specifications |
8*200MM | 10*180MM | |||
| Pressing method | Threaded screw cap compression | ||||
| Maximum pressure | ≤3Mpa | ||||
| PTFE maximum temperature | ≤220°C | ||||
| PPL maximum temperature | ≤260°C | ||||
| Heating and cooling rate | ≤5°C/Min | ||||
| Net weight | 1.5 2.2 |
2.2 | 2.5 | ||
| Dimensions | 68*97 | 74*125 | 79*133 | ||
