| Place of Origin: | Shanghai, China |
|---|---|
| Brand Name: | BAXIT |
| Model Number: | BAXIT-GHX-II |
| Minimum Order Quantity: | 1 |
| Price: | USD3740/unit |
| Delivery Time: | 1-3 working days |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000units |
| Model Number: | BAXIT-GHX-II | Country Of Origin: | Shanghai, China |
|---|---|---|---|
| Product Configuration: | Cold Water Circulation Device And Eight-position Magnetic Stirring Device | ||
| High Light: | Photocatalytic Reaction Laboratory Testing Equipment,Multifunctional Photochemical Reactor,Temperature Controlled Photocatalytic Reactor |
||
Photochemical reactor Multifunctional photochemical reactor photocatalytic reaction device

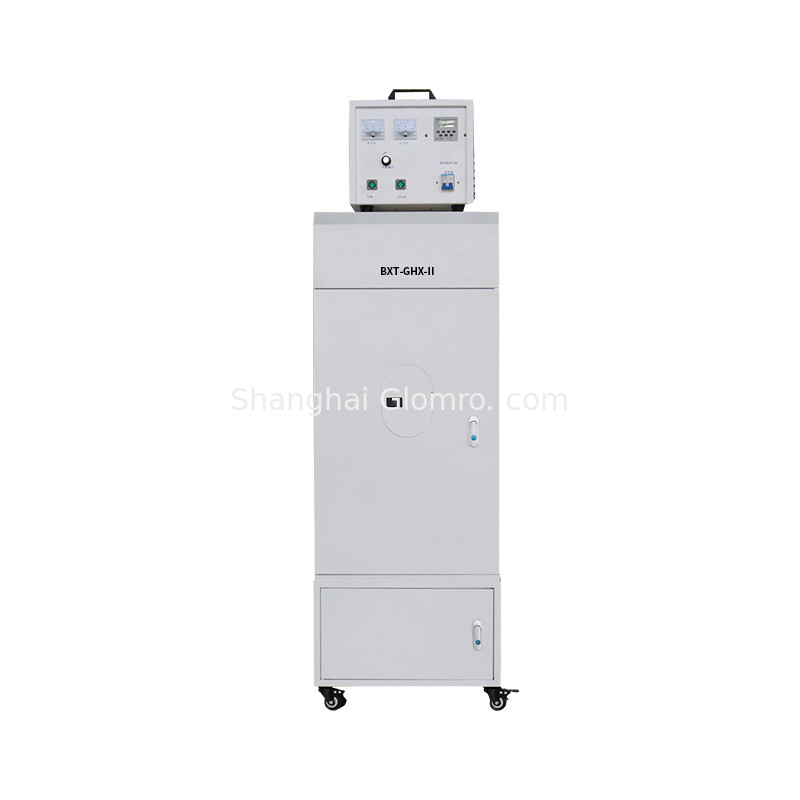

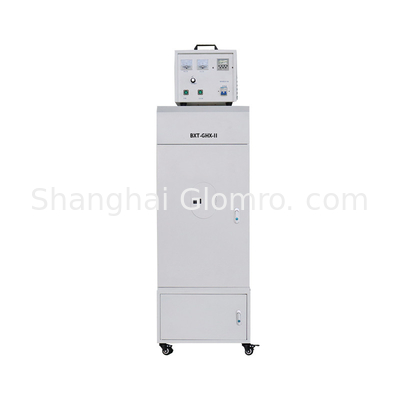

Photochemical reaction instrument BXT-GHX-II model
Product Description: BXT-GHX-II type photochemical reaction meter is a kind of large volume sample, can do 250ml/500/ml/1000/ liquid at a time. Can also be customized according to customer requirements, the reaction bottle with a high-power heating magnetic stirrer, so that the sample stirred evenly, but also controlled temperature.
【 Brief introduction 】BXT-GHX series photochemical reaction instrument is developed by Chuanhua Industrial Co., LTD., Shanghai Jiao Tong University, East China University of Science and Technology with the technical support of many professors. It is mainly used to study photochemical reactions under conditions such as gas or liquid phase medium, fixed or flowing system, ultraviolet light or simulated visible light, and whether the reaction vessel is supported by TiO2 photocatalyst. It has the functions of analyzing the samples of reaction products and free radicals, measuring the reaction kinetic constants, measuring the quantum yield, etc., and is widely used in chemical synthesis, environmental protection and life science and other research fields.
Main features:
● Microcomputer controller, power continuously adjustable
● The controller is equipped with ammeter and voltmeter for easy observation of current and voltage changes.
● Microcomputer timer, can be timed step by step.
● Internal light source, full light.
● Equipped with magnetic stirrer, so that the sample fully mixed light.
● Double-layer quartz cold trap, which can be passed into the cooling water circulation to avoid excessive temperature damage of the light source.
● There are 2 sockets on the left side of the box for the lamp source in the box and the plug of the stirring reactor.
● Equipped with movable trolley, easy to move or fix.
● Type BXT-GHX-I is suitable for processing large quantities of samples.
Technical parameters:
★ Light source power can be continuously adjusted.
★ Chuanhua integrated light source controller, can be used for mercury lamp, xenon lamp, gold halide lamp and other light sources.
★ Mercury lamp power adjustment range: 200~1000W can be continuously adjusted. Photochemical controller (500W/1000W optional)
★ Xenon lamp power adjustment range: 100~1000W can be continuously adjusted.
★ Halogen lamp power adjustment range: 200~500W can be continuously adjusted.
★ Glass reaction vessels can be selected 250ml, 500ml, 1000ml, etc. (or customized).
BXT-GHX-II Product Configuration:
Photochemical reaction instrument Product configuration:
Cold water circulation device: photochemical low temperature constant temperature circulator 1, reaction camera: 1, light source controller: 1, double quartz cold trap: 1, mercury lamp: 1, xenon lamp: 1, gold halide lamp: 1,
Mixer: 1 set, sample reaction bottle: 1 (250ml,500ml,1000ml optional), UV protection eye 1, mobile cart: 1.
| Model number | Product description | Main feature | Technical parameter | Product configuration |
| BXT-GHX-I | BXT-GHX-I type photochemical reaction meter is made One of the large volume samples, Can do 250ml/500/ml/1000/ liquid at a time. Can also be customized according to customer requirements, The reaction bottle has a high power heating magnetic stirrer under it, Stir the sample evenly, Also controlled temperature. |
● Microcomputer controller, power continuously adjustable ● The controller is equipped with ammeter and voltmeter for easy observation of current and voltage changes. ● Microcomputer timer, can be timed step by step. ● Internal light source, full light. ● Equipped with magnetic stirrer, so that the sample fully mixed light. ● Double-layer quartz cold trap, which can be passed into the cooling water circulation to avoid excessive temperature damage of the light source. ● There are 2 sockets on the left side of the box for the lamp source in the box and the plug of the stirring reactor. ● Equipped with movable trolley, easy to move or fix. ● Type BXT-GHX-I is suitable for processing large quantities of samples. |
★ Light source power can be continuously adjusted. ★ Can be integrated light source controller, can be used for mercury lamp, xenon lamp, gold halide lamp and other light sources. ★ Mercury lamp power adjustment range: 200~1000W can be continuously adjusted. Photochemical controller (500W/1000W optional) ★ Xenon lamp power adjustment range: 100~1000W can be continuously adjusted. ★ Halogen lamp power adjustment range: 200~500W can be continuously adjusted. ★ Glass reaction vessels can be selected 250ml, 500ml, 1000ml, etc. (or customized). |
Reaction camera obscura: 1, light source controller: 1, quartz cold trap: 1, mercury lamp: 1, xenon lamp: 1, gold halide lamp: 1 Mixer: 1 set, Sample reaction bottle: 1 piece (250ml, 500ml,1000ml optional), anti-ultraviolet eye 1, mobile cart: 1. |
| BXT-GHX-II | Cold water circulation device: 1 photochemical low temperature constant temperature circulator, Reaction camera obscura: 1, Can common light source controller: 1, Double quartz cold trap: 1, mercury lamp: 1, xenon lamp: 1, gold halide lamp: 1, Mixer: 1 set, sample reaction bottle: 1 (250ml,500ml,1000ml optional), UV protection eye 1, mobile cart: 1. |
|||
| BXT-GHX-III | Type BXT-GHX-III is It can be made as both a gas and a solid, The reactor is a high material Stainless steel, strong corrosion resistance, inside Through a variety of gases, above the reactor Quartz glass, light transmittance, light source is in Vertical irradiation above the reactor. Above the light source It's got a reflector, it brings in all the light Inside the reactor, the reactor is placed on a lifting platform Adjustable distance from light source. |
● Microcomputer controller, power continuously adjustable. ● The controller is equipped with ammeter and voltmeter for easy observation of current and voltage changes. ● Microcomputer timer, can be timed step by step. ● Internal light source, full light, gas reactor can be passed into special gas (with gas filtration). ● Equipped with eight-position magnetic stirring device, so that the sample is fully mixed by light. ● Double-layer quartz cold trap, which can be passed into the cooling water circulation to avoid excessive temperature damage of the light source. ● There are 2 sockets on the left side of the box for the lamp source in the box and the plug of the stirring reactor. ● Equipped with movable trolley, easy to move or fix. |
★ Light source power can be continuously adjusted. ★ Shanghai can be integrated light source controller, can be used for mercury lamp, xenon lamp, gold halide lamp and other light sources. ★ Mercury lamp power adjustment range: 200~1000W can be continuously adjusted. Photochemical controller (500W/1000W optional) ★ Xenon lamp power adjustment range: 100~1000W can be continuously adjusted. ★ Halogen lamp power adjustment range: 200~500W can be continuously adjusted. ★ Cooling capacity of cooling water circulation device: > 1000W ★ Cooling water circulation device is provided with casters and bottom drainage valve. (=) Large volume reaction part ★ Internal light type gas reactor, with gas filtration, the upper layer can be placed catalyst. |
Cold water circulation device: photochemical reaction meter low temperature constant temperature circulator Reaction camera: 1, Shanghai energy common light source controller: 1, quartz cold trap: 1, mercury lamp: 1000W1, xenon lamp: 1000W1, gold halide lamp: 500W1, gas reactor: 1, lifting platform: 1, reflector: 1, ventilation tube: several (m), gas flow meter: 2 to 8, (optional) UV protection eyes: 1, moving cart: 1. |
| BXT-GHX-IV | The BXT-GHX-V type is suitable for the processing of small batch samples. |
● Microcomputer controller, power continuously adjustable. ● The controller is equipped with ammeter and voltmeter for easy observation of current and voltage changes. ● Microcomputer timer, can be timed step by step. ● Internal light source, full light. ● Equipped with eight-position magnetic stirring device, so that the sample is fully mixed by light. ● Double-layer quartz cold trap, which can be passed into the cooling water circulation to avoid excessive temperature damage of the light source. ● There are 2 special sockets on the left side of the box for the lamp source in the box and the plug of the stirring reactor. ● Equipped with movable trolley, easy to move or fix. ●BXT-GHX-V type is suitable for small batch sample processing. ● The main machine is equipped with temperature protection, and the lamp is automatically extinguished when the temperature exceeds 50° |
★ Light source power can be continuously adjusted. ★ Can be integrated light source controller, can be used for mercury lamp, xenon lamp, gold halide lamp and other light sources. ★ Mercury lamp power adjustment range: 200~1000W can be continuously adjusted. Photochemical professional controller (500W/1000W optional) ★ Xenon lamp power adjustment range: 100~1000W can be continuously adjusted. ★ Halogen lamp power adjustment range: 200~500W can be continuously adjusted. ★ Quartz test tube specifications: 30ml, 50ml (or customized). ★ Can handle 8 samples at the same time (or customized). ★ The eight-position magnetic stirring device can synchronously adjust the stirring speed of 8 samples, and optionally rotate the stirring reactor at the same time. ★ Cooling capacity of cooling water circulation device: > 1000W ★ Cooling water circulation device is provided with casters and bottom drainage valve, temperature range -20°-100° |
Reaction camera: 1, a total dedicated light source controller: 1, quartz cold trap: 1, mercury lamp: 1000W1, xenon lamp: 1000W1, gold halide lamp: 500W1, Eight-position magnetic stirring device: 1 set, quartz test tube: 8 (30ml,50ml optional 8), UV eyes 1, mobile cart: 1. |
| BXT-GHX-V | Cold water circulation device: photochemistry special low temperature constant temperature circulator 1, reaction camera: 1, a total of special light source controller: 1, quartz cold trap: 1, mercury lamp: 1000W1, xenon lamp: 1000W1, gold halide lamp: 500W1, Eight-position magnetic stirring device: 1 set, quartz test tube: 8 (30ml,50ml optional 8), UV eyes 1, mobile cart: 1. |
