| Place of Origin: | China |
|---|---|
| Brand Name: | BAXIT |
| Certification: | CE |
| Model Number: | PM29327-86 N86.0 KTDC |
| Minimum Order Quantity: | 1unit |
| Price: | USD358/unit |
| Packaging Details: | carton |
| Delivery Time: | 3 days |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000units |
| Flow Rate: | 6.5L/min | Power: | 19.2W |
|---|---|---|---|
| Permissible Operating Pressure: | 0.3bar | Ultimate Vacuum: | 260-230mbar |
| Motor: | DC24V | ||
| High Light: | KTDC Vacuum Diaphragm Pump,Anti Corrosion KNF Sampling Pump,N86.0 Vacuum Diaphragm Pump |
||

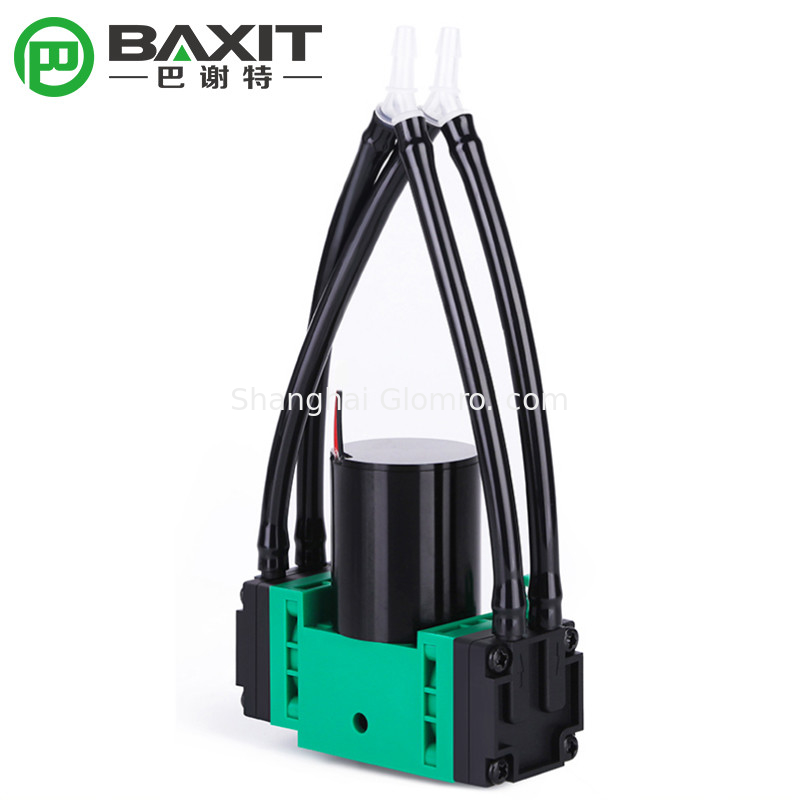

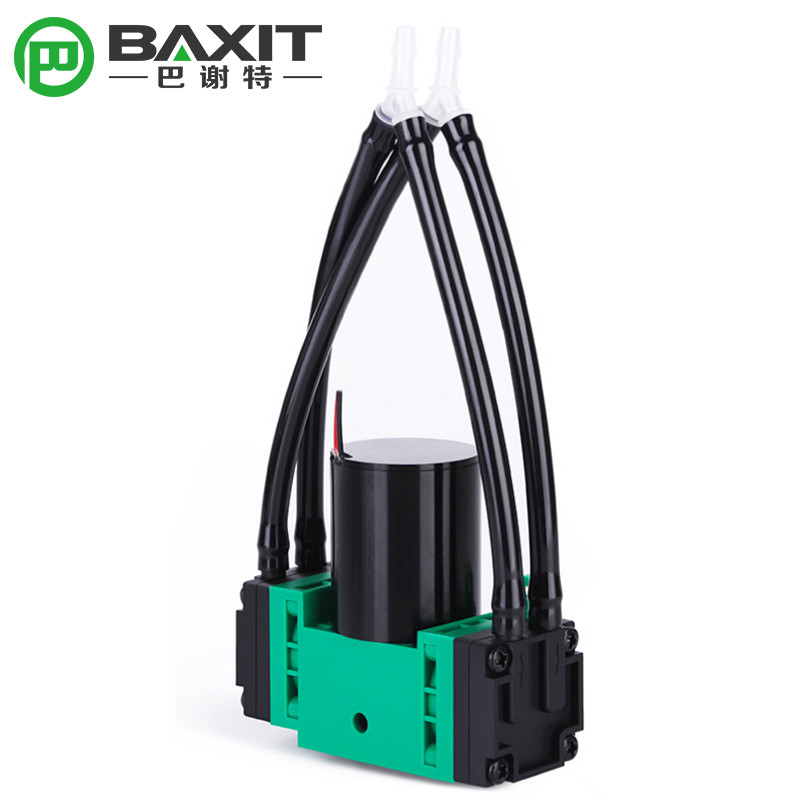

KNF Pump PM29327-86 N86.0 KTDC Vacuum Diaphragm Pump Anti Corrosion Sampling Pump
Adapt to the environment:
This product is used in industrial process gas continuous analysis system (extraction measurement), for gas extraction, internal anti-corrosion treatment, especially suitable for flue gas analysis. Extraction of gases such as SO2, NOX, CO2, CO, N2, O2, or a mixer can be performed.

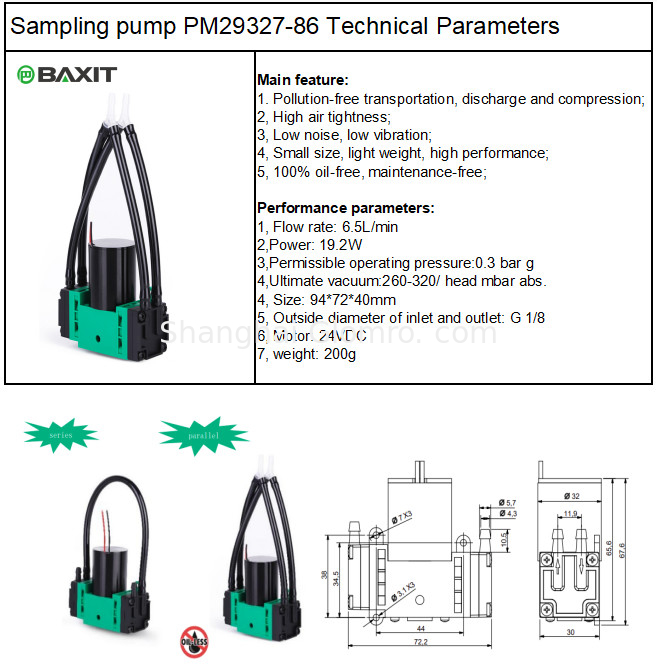

Technical Parameters:
(1) Model:PM29327-86 N86.0 KTDC
(2) Air pumping capacity: 6.5 L/min
(3) Power supply: DC24V
(4) Interface: 1/8'' internal thread
(5) Piping: Φ6 PTFE tube
(6) Working pressure: Pmax: 0.3Bar
(7) Weight: 1.0 Kg
Installation method:
This product is panel mounted, the mounting hole spacing is: 48mm, 48mm. The mounting hole size is: 4-Φ5.
Daily maintenance:
This product is an oil-free diaphragm vacuum pump, no need to refuel. If the inside is clogged or contaminated, open the top four screws, clean the gasket, and clean the pump membrane. If there is serious pollution, resulting in air leakage or insufficient air supply during the sampling process, the pump membrane should be replaced in time.
