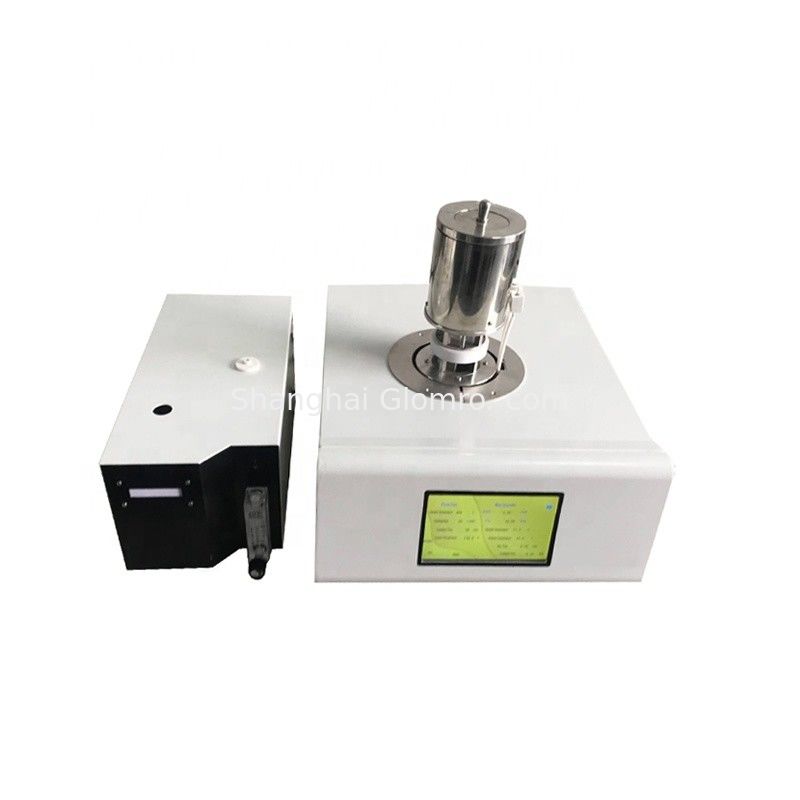

1550℃ High Temperature Thermogravimetric Analyzer

Basic Information
Place of Origin: China
Brand Name: BAXIT
Certification: CE,ISO
Model Number: BXT-TGA1550
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: export wooden box
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Temperature Range: Room Temperature ~1550℃ Temperature Resolution: 0.01℃
Temperature Fluctuation: ±0.1℃ Heating Rate: 0.1~100℃/min
Temperature Control: Heating And Constant Temperature Balance Measurement Range: 0.01mg ~ 2g
High Light:

coatings Thermogravimetric Analyzer

,

LCD Thermogravimetric Analyzer

,

0.01mg Thermogravimetric Analyzer


Product Description



Product introduction:

Thermogravimetric analysis (TG and TGA) is to observe the change of sample mass with temperature or time in the process of heating, constant temperature or cooling, with the purpose of studying the thermal stability and components of materials.
Widely used in plastic, rubber, coatings, drugs, catalysts, inorganic materials, metal materials and composite materials and other fields of research and development, process optimization and quality control.
The following characteristics of materials are measured and studied: thermal stability, decomposition process, adsorption and desorption, oxidation and reduction, quantitative analysis of components, influence of additives and fillers, moisture and volatiles, reaction kinetics.



Main features:

1. The balance has its own internal calibration function, with better accuracy and repeatability.
2. Imported alloy sensor, more corrosion resistance, oxidation resistance, high sensor sensitivity.
3. The furnace heating adopts precious metal alloy wire winding, which reduces interference and is more resistant to high temperature.
4. Perfect atmosphere control system, automatic switch of software Settings, and direct record of data in the database.
5. It uses Cortex-M3 kernel ARM controller to achieve faster processing speed and more accurate temperature control.
6. USB two-way communication is adopted to realize intelligent operation.
7. Use a 7-inch 24-bit color full-color LCD touch screen to display the status and data of the instrument in real time.
8. Upper open cover structure is adopted for easy operation. It is difficult to put the sample on the upper furnace, and the sample rod is easy to be damaged.
9. Automatically generate and print test reports. The test record, data processing and report format are built in the software, and the test report is issued automatically.



Technical parameters:

Temperature range room temperature ~1550℃
Temperature resolution 0.01℃
Temperature fluctuation ±0.1℃
Heating rate 0.1~100℃/min
Temperature control heating and constant temperature
Balance measurement range 0.01mg ~ 2g
Resolution 0.01mg
Constant temperature time set arbitrarily from 0 to 300min
Display mode Large LCD display of Chinese characters
Atmosphere Inert, oxidizing, reducing, static, dynamic
Atmosphere device built-in gas flow meter, including two gas switch and flow control
Software Intelligent software can automatically record TG curves for data processing and print experimental reports
Data interface standard USB interface, special software (free software upgrade from time to time)
Power supply AC220V 50Hz
