Oxidation Induction DSC Differential Scanning Calorimeter

Basic Information
Place of Origin: China
Brand Name: BAXIT
Certification: CE
Model Number: BXT-DSC100
Minimum Order Quantity: 1
Price: USD
Packaging Details: wooden
Delivery Time: 3 working days
Payment Terms: L/C, T/T, D/A, Western Union
Supply Ability: 1000units
Detail Information
Power: 600W Gas Flow Rate: 0-200mL/min
Gas Pressure: 0.2MPa DSC Range: 0~±500mW
DSC Sensitivity: 0.001mW Repeatability Of Temperature: ±0.01℃
High Light:

Oxidation Induction Differential Scanning Calorimeter

,

Oxidation Induction DSC Calorimeter

,

200mL/Min Differential Scanning Calorimeter


Product Description

BAXIT DSC 600C differential scanning calorimetry price





Overview:

Differential Scanning Calorimetry (DSC) is a classical thermal analysis method for the thermal effect of programmable temperature. It is used in various research and development, process optimization, quality control and failure analysis in various materials and chemistry fields. Occasionally, it has been widely used. Using the DSC method, we can study the phase transition of inorganic materials, the melting of polymer materials, the crystallization process, the polymorphism of drugs, and the solid/liquid phase ratio of foods such as oils and fats. In line with national standard GB/T2951.42-2008, GB/T15065-2009, GB/T17391-1998, GB/T19466.6-2009.

Technical characteristics:

1. The new fully enclosed metal furnace body design structure greatly improves the resolution and resolution and better baseline stability. To

2. Using professional alloy sensor, it is more resistant to corrosion and oxidation, and the sensor has high sensitivity.

3. Perfect two-way atmosphere control system, precise control of purge gas flow, automatic switching of software settings, and data directly recorded in the database.

4. The installation process has been improved, and all mechanical fixing methods are adopted to completely avoid the contamination of the internal heat of the furnace body by the differential heat signal.

5, dual temperature probe to ensure high repeatability of sample temperature measurement.

6. The digital gas mass flow meter automatically switches the two-way air flow, and the switching speed is fast and the stabilization time is short.

7. Standard samples are standard to facilitate the customer to correct the temperature coefficient.

8, software adaptive resolution computer screen; support notebook, desktop, support WIN2000, XP, WIN7, WIN8, WIN10 and other operating systems.

9. Support user self-programming program to realize full automation of measurement steps. The software provides dozens of instructions, and the user can flexibly combine the instructions according to their own measurement steps and save them. Complex operations are simplified into one-button operation.

Technical Parameters:

DSC range 0 ~ ± 500mW
Temperature range room temperature ~ 600 ° C
Heating rate 0.1~80°C/min
Temperature resolution 0.01 ° C
Temperature accuracy ± 0.1 ° C
Temperature repeatability ± 0.1 ° C
DSC accuracy ± 2%
DSC resolution 0.001mW
DSC sensitivity 0.001mW
Temperature control mode Heating, constant temperature, cooling, cycle temperature control (full program automatic control)
Curve scan Temperature scan
Atmosphere control Gas mass flow meter automatically switches two gas channels
Display mode 24bit color, 7 inch LED touch screen display
Data interface USB standard interface, supporting the corresponding operating software
Parameter standard Equipped with standard calibrator with one-button calibration function, users can calibrate the temperature by themselves
Working power AC220V 50Hz/60Hz



Applications:

Measure physical and chemical changes related to heat, such as glass transition temperature and melting point. Melting temperature, crystallization and crystallization heat, phase transition heat, product thermal stability, solidification/crosslinking, oxidation induction period, reaction kinetics, specific heat, and the like.

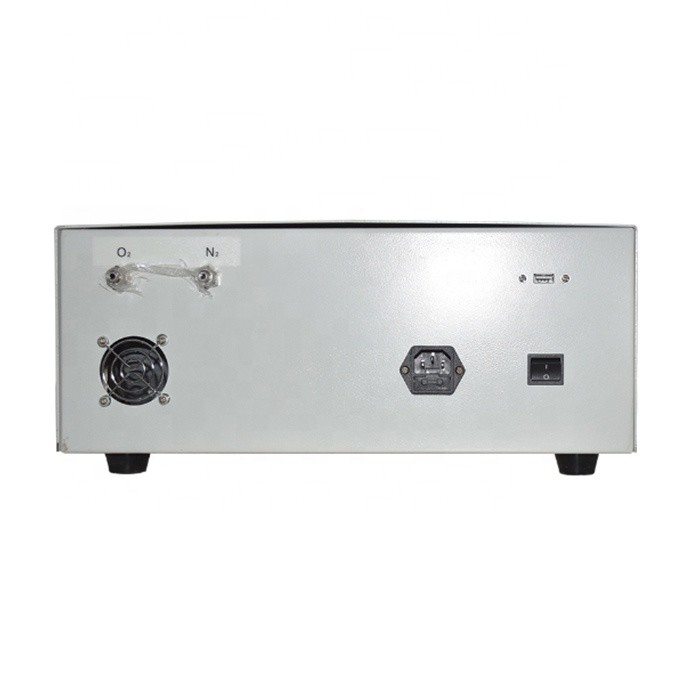

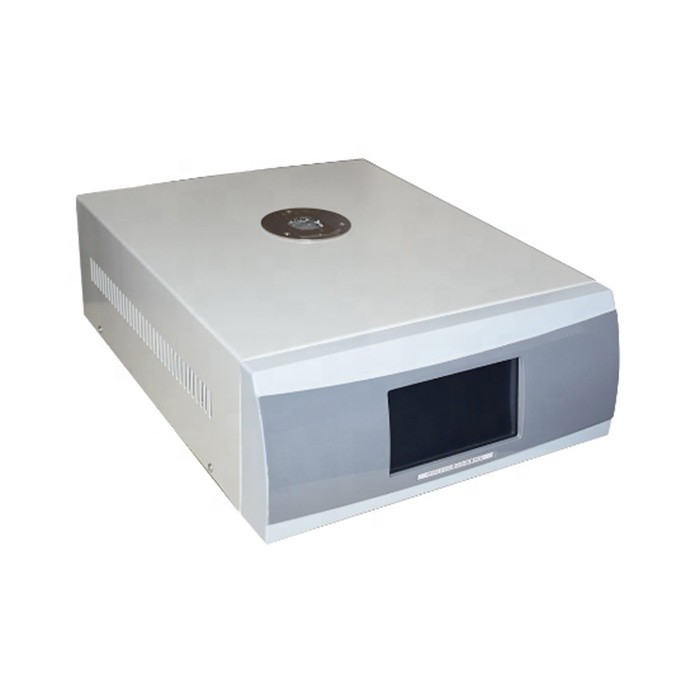

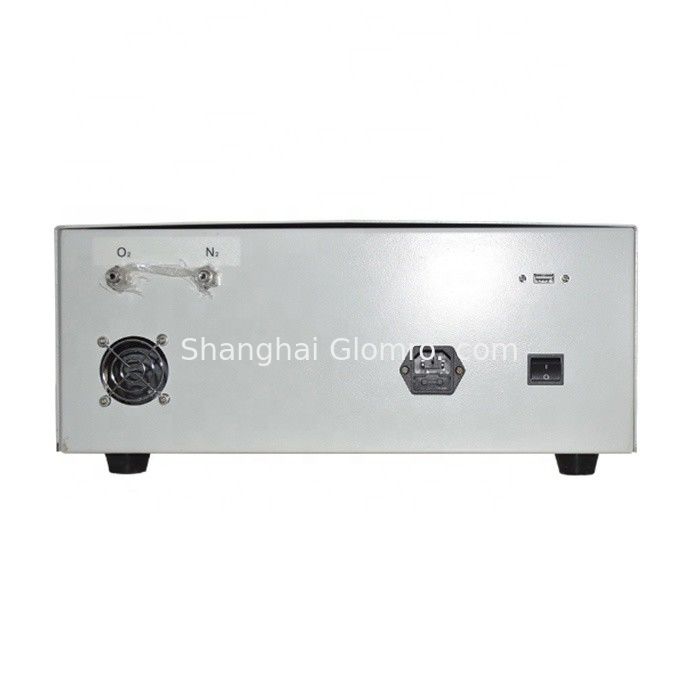

Product Picture:

Oxidation Induction DSC Differential Scanning Calorimeter 0Oxidation Induction DSC Differential Scanning Calorimeter 1Oxidation Induction DSC Differential Scanning Calorimeter 2
