| Place of Origin: | China |
|---|---|
| Brand Name: | BAXIT |
| Certification: | CE |
| Model Number: | BXT-DSC100 |
| Minimum Order Quantity: | 1 |
| Price: | USD |
| Packaging Details: | wooden |
| Delivery Time: | 3 working days |
| Payment Terms: | L/C, T/T, D/A, Western Union |
| Supply Ability: | 1000units |
| Data Interface: | USB | Parameter Standard: | Equipped With Standard Calibrator With One-button Calibration Function |
|---|---|---|---|
| Curve Scan: | Temperature Scan | DSC Noise: | 0.001μW |
| Temperature Range: | RT ~ 600 ° C | Heating Rate: | 0.1~80°C/minute |
| Warranty: | 3 Years | ||
| High Light: | Temperature Scan Differential Scanning Calorimeter,USB Differential Scanning Calorimeter,Bilateral DSC Calorimeter |
||
BAXIT DSC 600C differential scanning calorimetry price
Overview:
Differential Scanning Calorimetry (DSC) is designed to determine the inner heat transition relating to temperature and heat flow, it's a classical thermal analysis method for the thermal effect of programmable temperature. It is used in various research and development, process optimization, quality control and failure analysis in various materials and chemistry fields. Occasionally, it has been widely used. Using the DSC method, we can study the phase transition of inorganic materials, the melting of polymer materials, the crystallization process, the polymorphism of drugs, and the solid/liquid phase ratio of foods such as oils and fats. In line with national standard GB/T2951.42-2008, GB/T15065-2009, GB/T17391-1998, GB/T19466.6-2009.
Technical characteristics:
1. New designed oven structure ensures high resolution and good stability of base line;
2. Air flow meter may control the air flow rate accurately; the test data can be recorded into the database directly;
3. The instrument is bilateral control, may be controlled by both main frame and software. User-friendly interface, easy operation.
4. The new fully enclosed metal furnace body design structure greatly improves the resolution and resolution and better baseline stability. To
5. Using professional alloy sensor, it is more resistant to corrosion and oxidation, and the sensor has high sensitivity.
6. Perfect two-way atmosphere control system, precise control of purge gas flow, automatic switching of software settings, and data directly recorded in the database.
Technical Parameters:
| DSC range | 0 ~ ± 500mW |
| Temperature range | room temperature ~ 600 ° C |
| Heating rate | 0.1~80°C/min |
| Temperature resolution | 0.01 ° C |
| Temperature accuracy | ± 0.1 ° C |
| Temperature repeatability | ± 0.1 ° C |
| DSC accuracy | ± 2% |
| DSC resolution | 0.001mW |
| DSC sensitivity | 0.001mW |
| Temperature control mode | Heating, constant temperature, cooling, cycle temperature control (full program automatic control) |
| Curve scan | Temperature scan |
| Atmosphere control | Gas mass flow meter automatically switches two gas channels |
| Display mode | 24bit color, 7 inch LED touch screen display |
| Data interface | USB standard interface, supporting the corresponding operating software |
| Parameter standard | Equipped with standard calibrator with one-button calibration function, users can calibrate the temperature by themselves |
| Working power | AC220V 50Hz/60Hz |
Applications:
Measure physical and chemical changes related to heat, such as glass transition temperature and melting point. Melting temperature, crystallization and crystallization heat, phase transition heat, product thermal stability, solidification/crosslinking, oxidation induction period, reaction kinetics, specific heat, and the like.

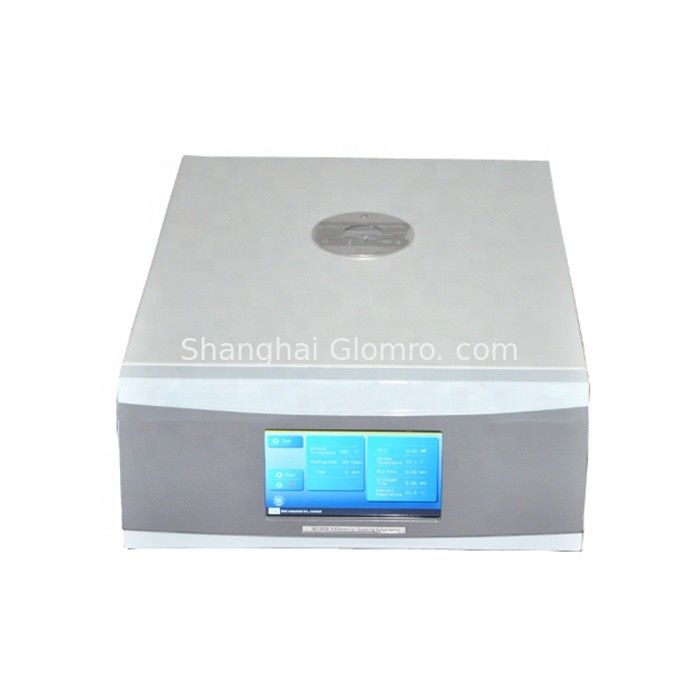

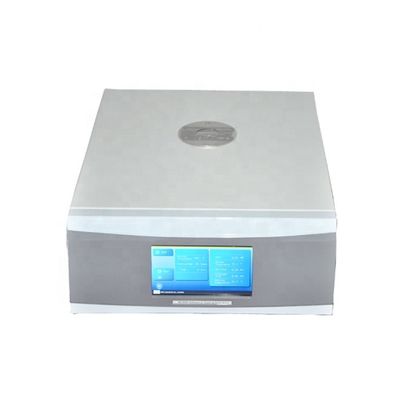

Product Picture:
