600W 1250C 0.001mW DTA Differential Thermal Analyzer

Basic Information
Place of Origin: China
Brand Name: BAXIT
Certification: CE
Model Number: BXT-DTA1250
Minimum Order Quantity: 1
Packaging Details: wooden
Delivery Time: 3 working days
Payment Terms: L/C, T/T, D/A, Western Union
Supply Ability: 1000units
Detail Information
Gas Flow Rate: 0-200mL/minute Temperature Resolution: 0.01℃
Power: 600W Temperature Range: RT~1250℃
Gas Pressure: 0.2MPa Temperature Repeatability: ±0.1℃
High Light:

0.001mW Differential Thermal Analyzer

,

1250C Differential Thermal Analyzer

,

600W Differential Thermal Analyzer


Product Description

BAXIT DTA1250 differential thermal analyzer





Overview:

Differential thermal analyzer is a technique to measure the temperature difference between a substance and a reference substance under a programmed temperature control. In the DTA test, the change of sample temperature is caused by the endothermic or exothermic effects of the phase transition or reaction.

Technical characteristics:

1, industrial-grade wide-screen touch structure, display information is rich, including set temperature, sample temperature, oxygen flow, nitrogen flow, differential heat signal, various switch states.

2, USB communication interface, strong versatility, reliable signal without interruption, support self-recovery connection function.

3. The structure of the furnace body is compact, and the temperature rise and fall rate can be adjusted arbitrarily.

4. The installation process has been improved, and all mechanical fixing methods are adopted to completely avoid the contamination of the internal heat of the furnace body by the differential heat signal.

5, dual temperature probe to ensure high repeatability of sample temperature measurement.

6. The digital gas mass flow meter automatically switches the two-way air flow, and the switching speed is fast and the stabilization time is short.

7. The instrument is equipped with standard materials, and users can calibrate each temperature section by themselves to reduce the error of the instrument.

8. Intelligent software design, automatic drawing of the instrument in the whole process, the software can realize various data processing, such as the calculation of enthalpy, glass transition temperature, oxidation induction period, melting point and crystallization of substances, etc.

9. Support user self-programming program to realize full automation of measurement steps. The software provides dozens of instructions, and the user can flexibly combine the instructions according to their own measurement steps and save them. Complex operations are simplified into one-button operation.

Technical Parameters:

DTA range 0 ~ 2000V
Temperature range room temperature ~ 1250 ° C
Heating rate 0.1~80°C/min
Temperature resolution 0.01 ° C
Temperature accuracy ± 0.1 ° C
Temperature repeatability ± 0.1 ° C
DTA accuracy 0.01V
DTA resolution 0.001mW
DTA sensitivity 0.001mW
Temperature control mode Heating: Parameters can be adjusted according to the needs of the program control.
Constant temperature: the program controls the constant temperature time to set arbitrarily.
Curve scan heating scan
Atmosphere control Automatic instrument switching
Display mode 24bit color, 7 inch LED touch screen display
Data interface USB standard interface, supporting the corresponding operating software
Parameter standard Equipped with standard calibrator with one-button calibration function, users can calibrate the temperature by themselves
Working power AC220V 50Hz or customized



Applications:

Measure physical and chemical changes related to heat, such as the melting point, melting heat, crystallization and crystallization heat, phase change reaction heat, thermal stability (oxidation induction period), glass transition temperature, oxidation or reduction reaction, destruction of lattice structure and other chemical reactions.

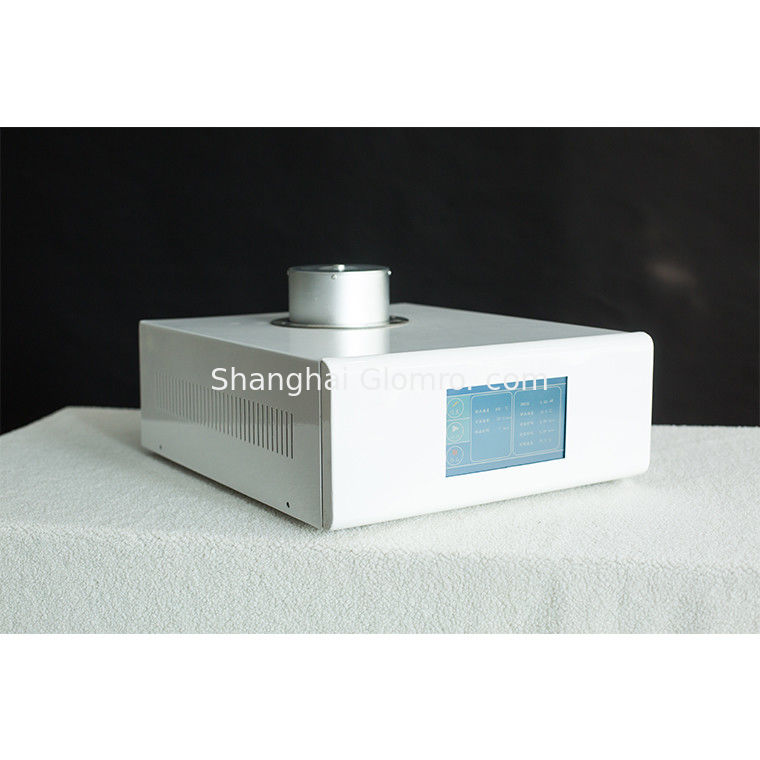

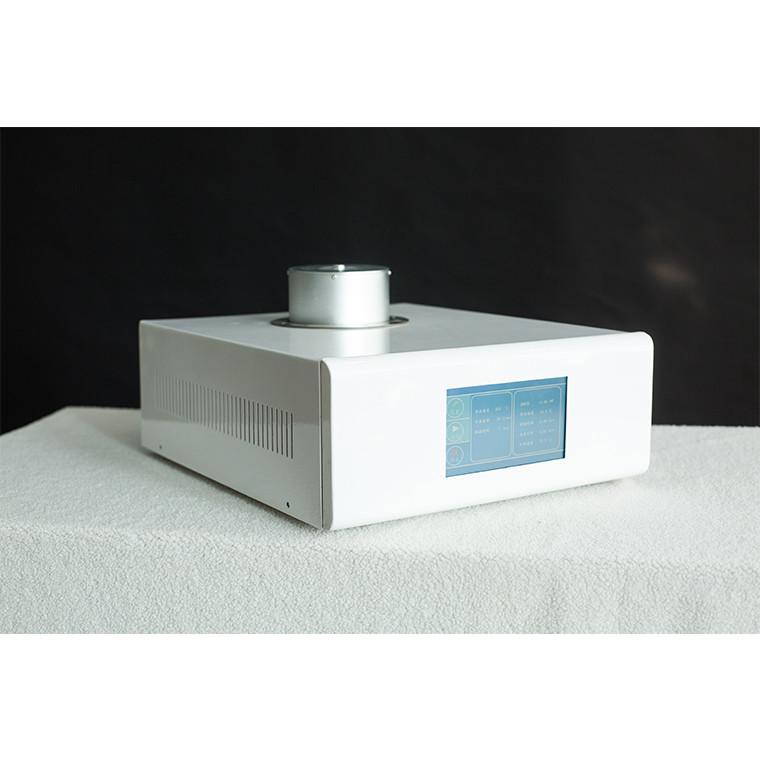

Product Picture:

600W 1250C 0.001mW DTA Differential Thermal Analyzer 0

600W 1250C 0.001mW DTA Differential Thermal Analyzer 1600W 1250C 0.001mW DTA Differential Thermal Analyzer 2
