| Place of Origin: | China |
|---|---|
| Certification: | CE |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | 1610X600X1310 cm |
| Delivery Time: | 5-8workdays |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100+sets+5days |
| Brand Name: | BAXIT | Model Number: | PM29556-86 |
|---|---|---|---|
| Condition:: | New | Warranty: | 12 Months |
| Power Supply: | 220-230VAC 50HZ | Pressure: | Low Pressure |
| Interface: | 1/8'' Internal Thread | ||
| High Light: | Vacuum Sampling Diaphragm Pump,1/8" Internal Thread Diaphragm Pump,PTFE Tube Diaphragm Pump |
||

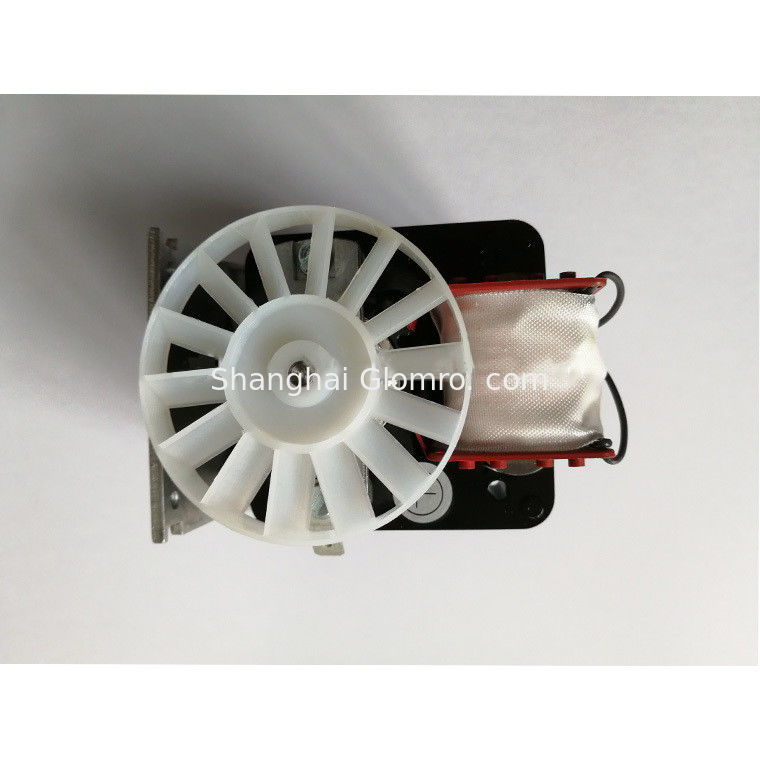

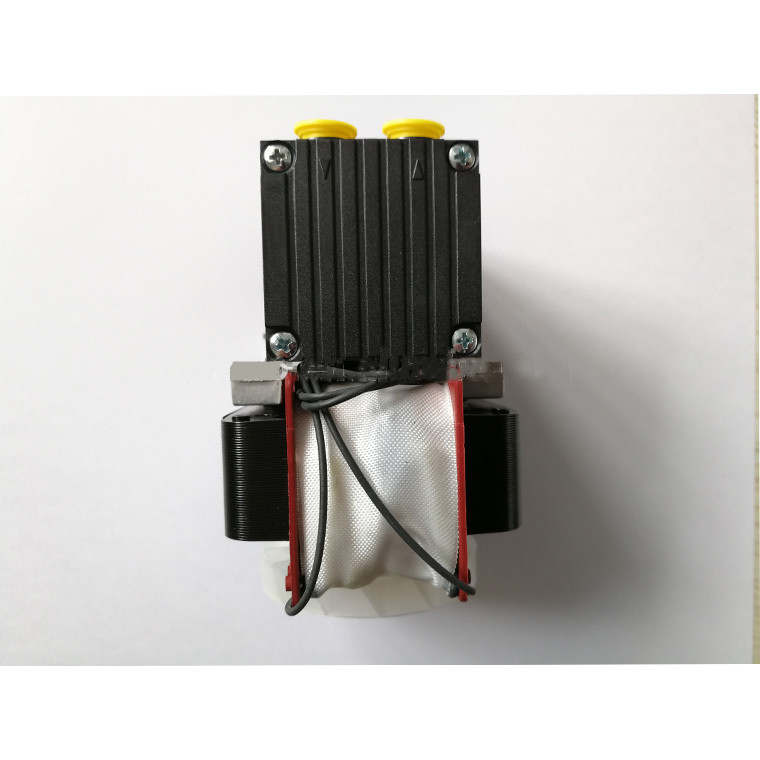

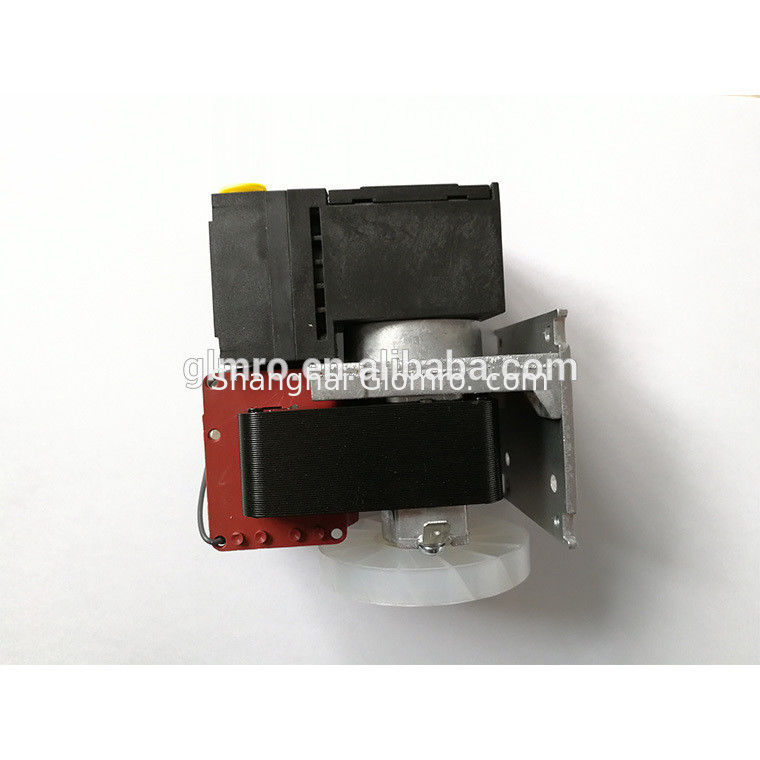

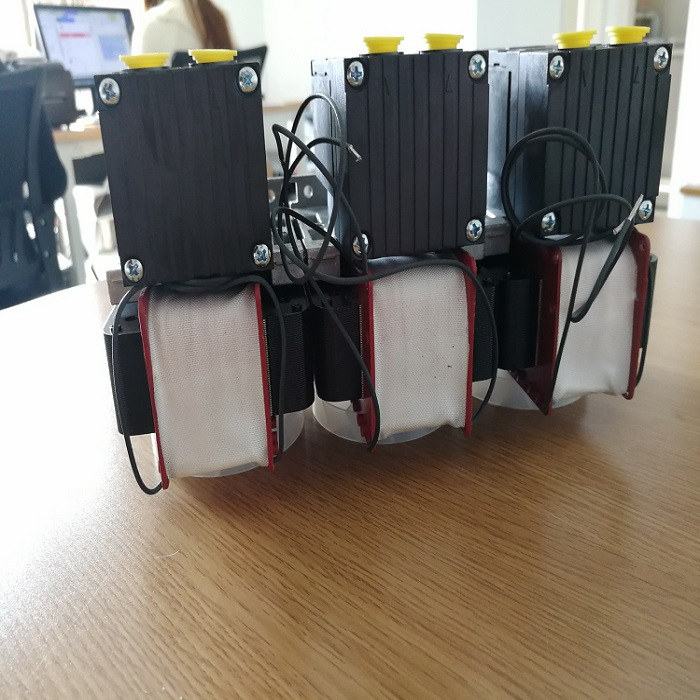

Germany original KNF PM29556-86 vacuum pump, sampling pump,diaphragm pump
Adapt to the environment:
This product is used in industrial process gas continuous analysis system (extraction measurement), for gas extraction, internal anti-corrosion treatment, especially suitable for flue gas analysis. Extraction of gases such as SO2, NOX, CO2, CO, N2, O2, or a mixer can be performed.
Technical Parameters:
(1) Model: PM29556-86
(2) Air pumping capacity: 6 liters / minute
(3) Power supply: 220-230VAC 50HZ
(4) Interface: 1/8'' internal thread
(5) Piping: Φ6 PTFE tube
(6) Working pressure: Pmax: 0.5 Bar
(7) Power: 60W
(8) Weight: 1.1 Kg
Installation method:

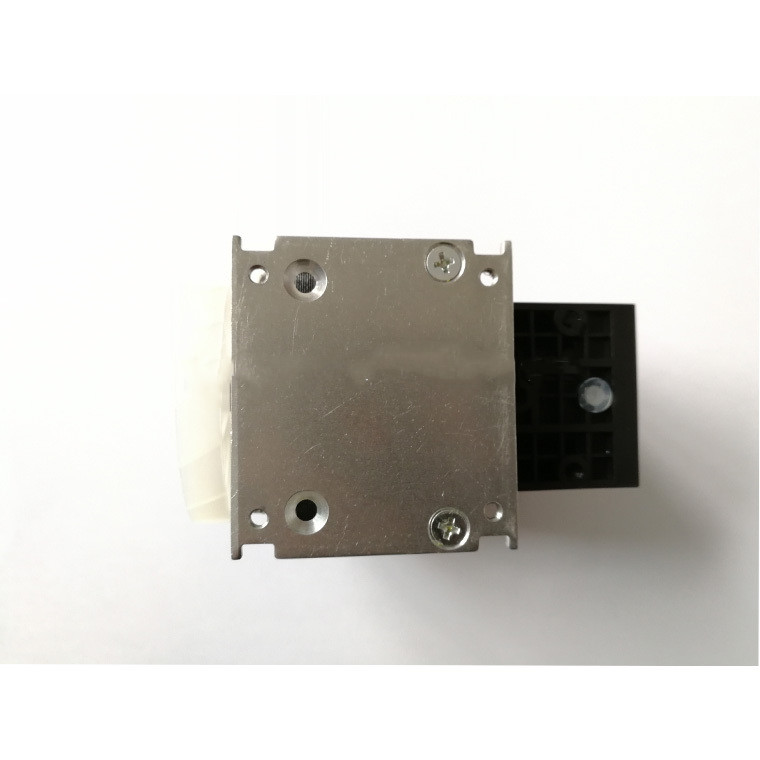

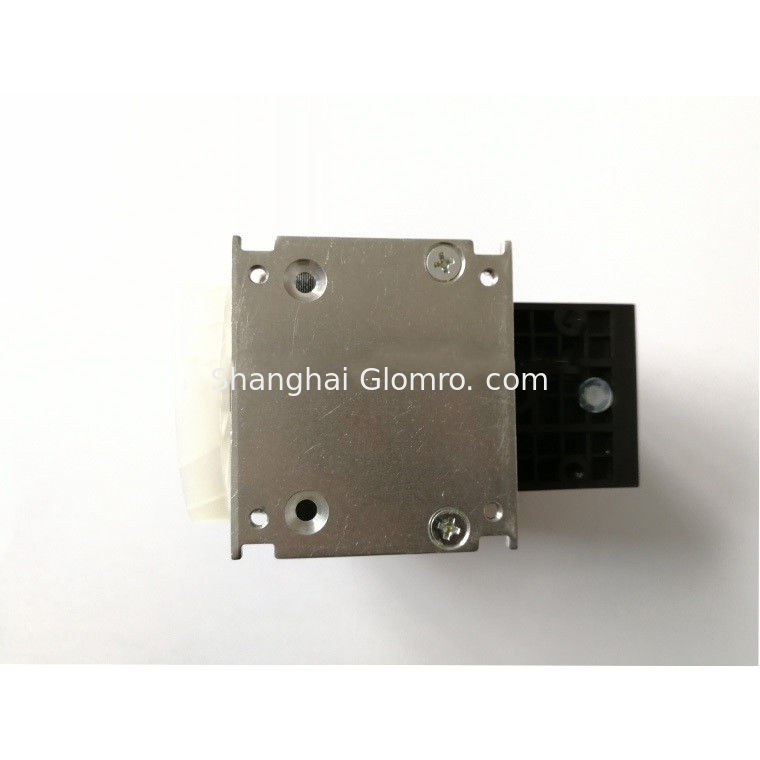

This product is panel mounted, the mounting hole spacing is: 48mm, 48mm. The mounting hole size is: 4-Φ5.
Daily maintenance:
This product is an oil-free diaphragm vacuum pump, no need to refuel. If the inside is clogged or contaminated, open the top four screws, clean the gasket, and clean the pump membrane. If there is serious pollution, resulting in air leakage or insufficient air supply during the sampling process, the pump membrane should be replaced in time.
Packaging & Shipping
1. Aluminium box and carton box, careful and tight package, make sure the package is intact
2. The package will be shipped by DHL/Fedex/TNT/EMS/UPS/China post/EF-Express/Special line, as you have chose in the order
Our Services
If you encounter with any problems during the testing process,we promise providing urgent guidence and after-sales sevice within 48 hours and solution providing within 3 working days. If customers require on-site service, the transport and travel expense shall be responsible for the cost.
1. Pre-service
24 Hours online service for customers' consultation.
2. Middle service
--Fullfill customer's request:
--Payment method depends on customer.
--Promptly production and delivery
--Can provide invoice value if you want to decrease your tax.
3. After sale service
--One year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Remote control technical consult
