| Place of Origin: | German |
|---|---|
| Brand Name: | KRIWAN |
| Model Number: | SE-B2 |
| Minimum Order Quantity: | 1 |
| Price: | negotiate |
| Supply Ability: | 50UITE/DAY |
| SIZE: | 5.8*3.4*5cm | Weight: | 0.5kg |
|---|---|---|---|
| Serial Number: | No34702701 | Name: | Bitzer Compression Motor Protector |
| High Light: | mro products,mro goods |
||

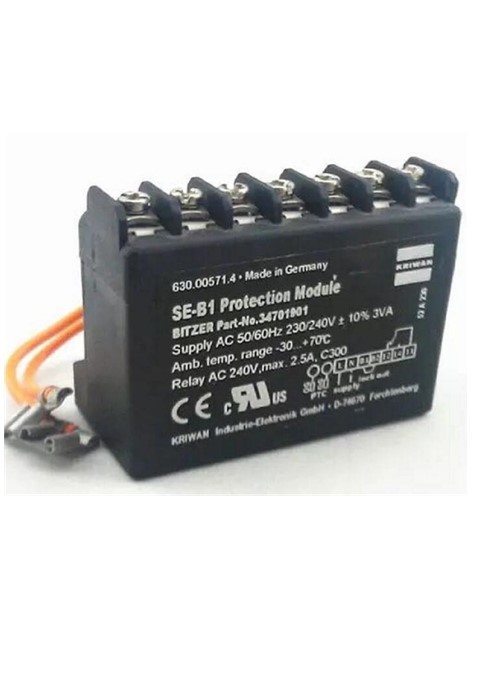

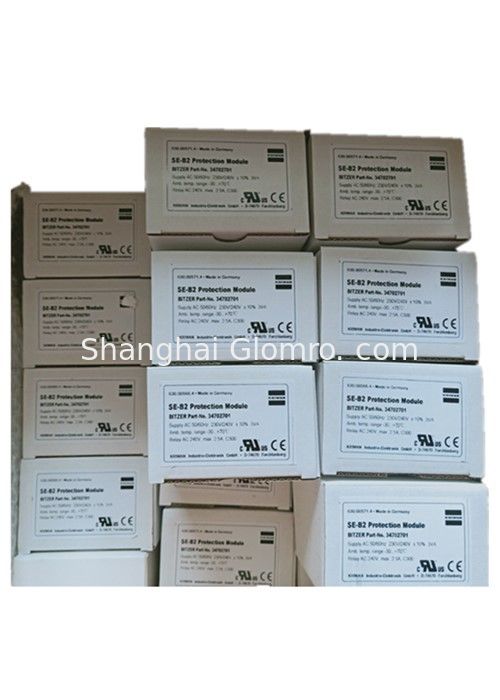

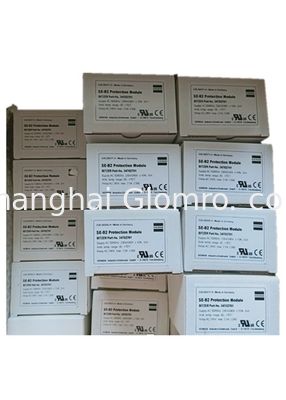

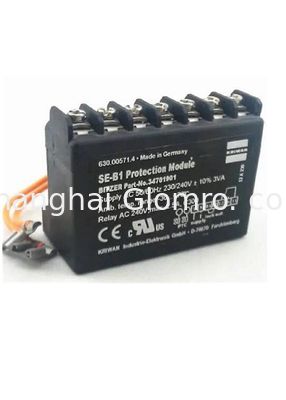

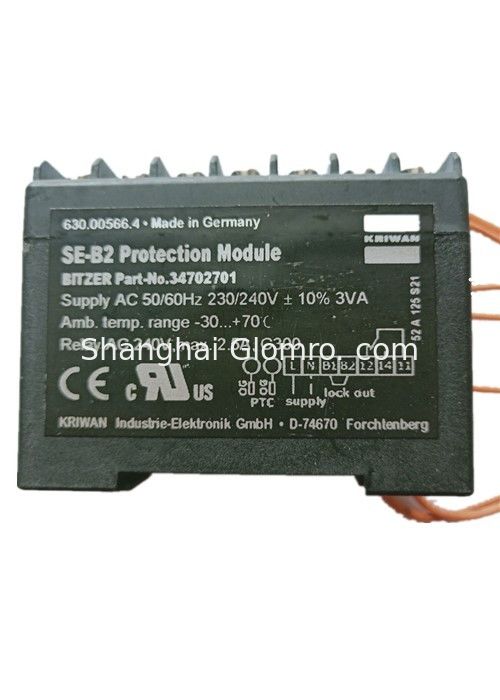

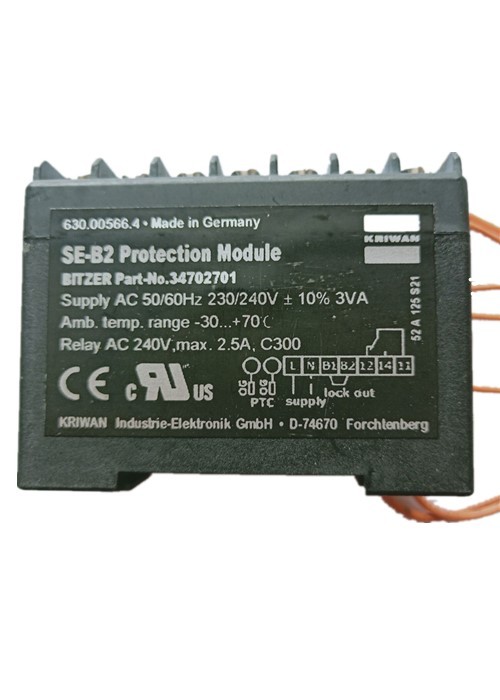

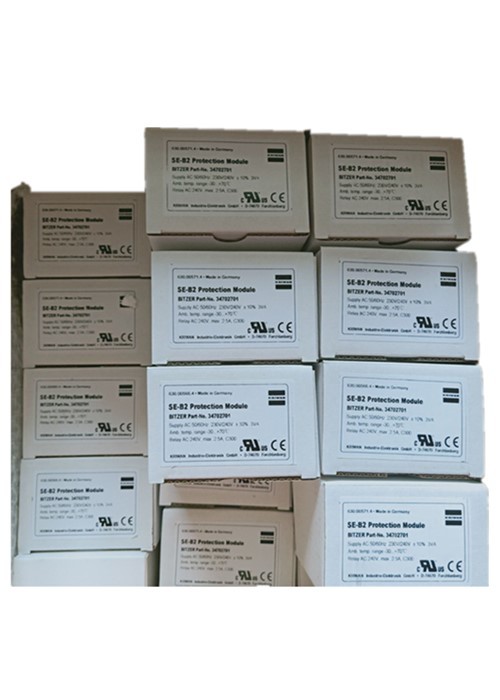

SE-B1 SE-B2 Protection Module made in Germany Bitzer compression motor protector
The world's compressor control and protection industry giant KRIWAN Germany began production of INT series compressor control protectors and PTC thermistors in 1966. The company has a long history and its products are well-known in the international market and are recognized as the best choice for controlling compressors. In Europe, KRIWAN's products are used on almost all compressors, with a market share of 90%.
The product has also been selected as the designated product by the world's major compressor manufacturers in the refrigeration industry, including YORK York, REFCOMP, Italy, Dorin Turin, frascold, BITZER, Germany Bock Blog Company, Taiwan Hanbell Hanzhong Company, etc
Specification
Dual voltage power supply: 50 ~ 60HZ 3.0 V A; AC 208 ~ 415V ± 10%, AC 115 ~ 230V ± 10%, AC 24 ~ 48V ± 10%
* Storage Temperature: -30-70 ℃
* Temperature measurement circuit: PTC (DIN44081 / 082)
- The number of sensors: 1-9
- R25 ℃ Gross: <1.8 KΩ
- R Action: 4.50 KΩ ± 20%
- R Reset: 2.75 KΩ ± 20%
- Maximum lead length: <30m
* Motor monitoring voltage: 3AC 50 / 60HZ, 200-575V ± 10%
* Output relay: max AC 240V, max 2.5A, C300; min> 24V AC / DC,> 20mA.
* Life: about 108 times
* Degree of protection: IP00
* Connectivity: 6.3mm Blade
* Material: PA66, GF25
* Installation: screws or rails
* Size: 76.5 * 81.5 * 34.5
.
