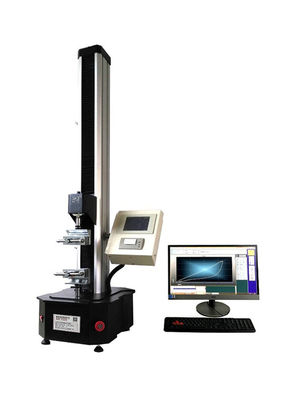

High Precision Tensile Strength Machine With Single Arm Structure

Basic Information
Place of Origin: Shanghai, China(mainland)
Brand Name: BAXIT
Model Number: BXT-T100
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 5-8 days
Payment Terms: L/C, D/A, D/P, Western Union
Supply Ability: 10Set per day
Detail Information
Power: Electronic Usage: Tensile Testing Machine
Stretch Space: 800 (mm) Warranty: 1 Year
Max Load: 100 KN Product Name: Tensile Strength Tester / Tension Impact Test Machine
High Light:

tensile strength testing equipment

,

universal tensile tester


Product Description

Tensile strength tester / Tension impact Test Machine





QUICK DETAIL



This machine is a new type of universal material testing machine combined with electronic technology and mechanical transmission. It is designed and manufactured according to GB, JIS, ASTM, DIN and other standards. It is used for the testing of metal and non-metal materials. Such as: castings, steel, copper, non-ferrous metals.
Wire can be stretched, compressed, bent, sheared, peeled, torn, two-point extension, and other tests. Can automatically calculate the tensile strength, elongation, yield strength, set stress, fixed edge stress, elastic modulus and other parameters



Tensile strength tester/Tension impact Test MachineTensile strength tester/Tension impact Test Machine



ADVANTAGES



1. Adjustable fixed device is added to adjust the upper and lower height of the measurement. The position is adjustable and the precision is high.
2. Automatic switching control, with stepless speed regulation.
3. Using a single arm structure, the structure is more stable
4. The fixture and the fixing table are made of hard material. The screw holes can be used M6 screws to fix the measured object with the fixture.
5. Compatible and equipped with a variety of styles of force gauge, can be configured with a digital push-pull gauge or pointer push-pull gauge
6. With three specifications of the test frame for customers to choose, effective test range can reach 200mm, 400mm, 700mm



TECHNICAL PARAMETERS



Model Glo-200-500N Glo-400-500N Glo-700-500N Glo-200-1000N Glo-400-1000N Glo-700-1000N
Test load 500N 1000N
Test range 200mm 400mm 700mm 200mm 400mm 700mm
Test speed 25-280mm
Power supply AC220V
Extermal size 280*340*780 280*340*980 280*340*1270 280*340*780 280*340*980 280*340*1270
Weight(kg) 38 40 42 38 40 42
