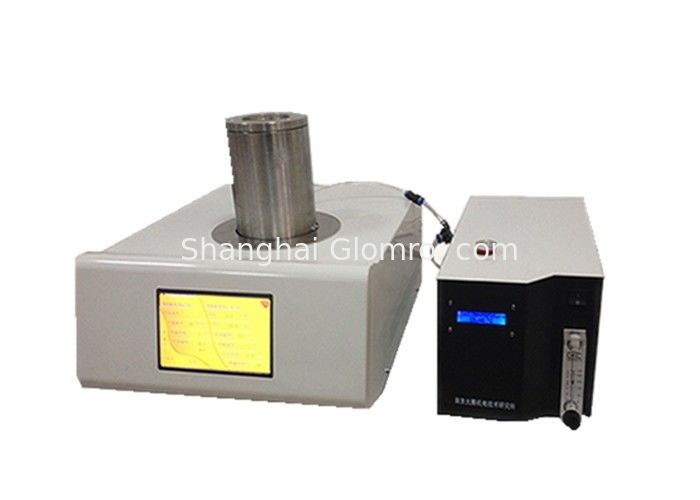

Plastic / Rubber Thermo Gravimetric Analyzer With 7 Inch Full Color Touch Screen

Basic Information
Place of Origin: CHINA
Brand Name: BAXIT
Model Number: TGA-101
Minimum Order Quantity: 1SET
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 5-8 WORK DAY
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Set/Sets per Month
Detail Information
Power: Electronic Usage: Universal Testing Machine
Warranty: 1 Year Power Supply: 220V 50HZ
Color: White Certification: CE,ISO,GB
High Light:

laboratory testing machines

,

lab testing equipment


Product Description

TGA Thermo Gravimetric Analyzer plastic rubber thermal tester





QUICK DETAILS

Thermo gravimetric analysis (TG, TGA) is the observation of the quality of a sample as a function of temperature or time during temperature rise, constant temperature or temperature reduction. The purpose is to study the thermal stability and composition of the material. Widely used in research and development, process optimization and quality monitoring in various fields such as plastics, rubber, coatings, pharmaceuticals, catalysts, inorganic materials, metal materials and composite materials.



APPLICATION

Used to study the thermal stability, decomposition process, adsorption and desorption, oxidation and reduction of materials, and quantitative analysis of components, additives and fillers

Widely used in research and development, process optimization and quality monitoring in various fields such as plastics, rubber, coatings, pharmaceuticals, catalysts, inorganic materials, metal materials and composite materials.



ADVANTAGES



Structural advantages:
1. The furnace body is heated by double-row winding of precious metal nickel-chromium alloy wire, which reduces interference and is more resistant to high temperature.
2. The tray sensor is made of precious metal nickel-chromium alloy and has the advantages of high temperature resistance, oxidation resistance and corrosion resistance.
3. Power supply, the circulating heat dissipation part is separated from the main unit to reduce the influence of heat and vibration on the micro-heat balance.
4. It adopts the upper open cover structure and is easy to operate. It is difficult to put the sample up the furnace and it is easy to cause damage to the sample rod.
5. The main engine uses insulation to isolate the thermal influence of the heating furnace on the chassis and the micro-heat balance.
6. Can replace the furnace body according to customer requirements



Controller and software advantages:
1. Imported 32bit ARM processor Cortex-M3 core, sampling speed, processing speed is faster.
2.24bit four-way sampling AD collects DSC signals and TG signals and temperature T signals.
3. The power supply and water circulation part is separately controlled by 8bit single-chip microcomputer, so that the main unit and the cooling part are separated, and they do not interfere with each other, but the two are closely connected, and the cooling part is controlled by the host.
4. USB two-way communication between the software and the instrument, fully realize remote operation, the parameter setting of the instrument and the running of the instrument can be stopped by the computer software.
5. 7-inch full color 24bit touch screen, better man-machine interface. TG calibration can be achieved on the touch screen



TECHNICAL PARAMETERS

Model TGA-101
Temperature range Room temperature ~1150 ° C,
Temperature resolution 0.1 ° C
Constant temperature accuracy ±0.1°C
Heating rate 1~80°C/min
Temperature control method Heating, constant temperature, cooling
Cooling time 15min (1000°C-100°C)
Scale measurement range 1mg ~ 2g, can be extended to 30g
Resolution 0.01mg
Constant temperature preset time 0 to 300min arbitrarily set
Gas effect Inert, oxidizing, reducing, static, dynamic
Gas device Built-in gas flow meter with two-way gas switching and flow rate control
software Intelligent software can automatically record TG curves for data processing and print experimental reports
Data interface Standard USB interface
Power supply

220V 50HZ







Plastic / Rubber Thermo Gravimetric Analyzer With 7 Inch Full Color Touch Screen 0

Plastic / Rubber Thermo Gravimetric Analyzer With 7 Inch Full Color Touch Screen 1

Plastic / Rubber Thermo Gravimetric Analyzer With 7 Inch Full Color Touch Screen 2

Plastic / Rubber Thermo Gravimetric Analyzer With 7 Inch Full Color Touch Screen 3

Packaging & Shipping

1. Aluminium box and carton box, careful and tight package, make sure the package is intact

2. The package will be shipped by DHL/Fedex/TNT/EMS/UPS/China post/EF-Express/Special line, as you have chose in the order.

Plastic / Rubber Thermo Gravimetric Analyzer With 7 Inch Full Color Touch Screen 4



Our Services

If you encounter with any problems during the testing process,we promise providing urgent guidence and after-sales sevice within 48 hours and solution providing within 3 working days. If customers require on-site service, the transport and travel expense shall be responsible for the cost.

1. Pre-service

24 Hours online service for customers' consultation.

2. Middle service

--Fullfill customer's request:

--Payment method depends on customer.

--Promptly production and delivery

--Can provide invoice value if you want to decrease your tax.

3. After sale service

--One year warranty service and all life maintenance.

--Technical Egineer are avalible for oversea trainning.

--Remote control technical consult
