| Place of Origin: | CHINA |
|---|---|
| Brand Name: | BAXIT |
| Model Number: | GLO-OF54 |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | within 7days after receive payments |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 Set/Sets per Month |
| Power: | Electronic | Weight: | 225KG |
|---|---|---|---|
| Standard: | BS.EN.ASTM | Usage: | Drop Tester |
| Application: | Mobile Phone Lenses, Glass, Coating Materials, | Size: | 450 * 450 * 2300MM |
| High Light: | lab testing instruments,lab testing equipment |
||
Spectrum Transmission Meter / UV IR Transmittance Meter
Product Description
Equipment Overview
This machine is designed to measure the collision of finished products or components such as electronics, electrical appliances, home appliances, plastics, communications, etc. during the installation process, so as to evaluate whether the product structure is poor or not enough for the test test. A certain degree of free fall, hit the sample, components, to observe the degree of damage to the product.

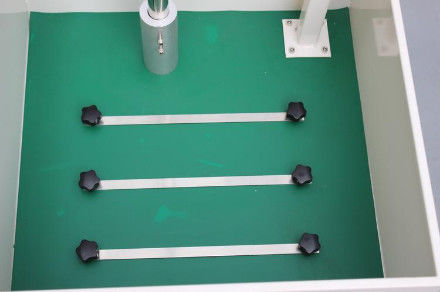

1. Hold the test sample, according to the shape of the test sample and the drop of the test sample, the test fixture is clamped using the clamp (whether the test fixture needs to be clamped according to the customer).
2. Start to set the test stroke. Loosen the fixed handle on the electromagnet lever with your left hand. Move the bottom of the electromagnet fixing rod to 4cm above the required drop height (in this case, the drop height is not very high) , and then slightly fix the handle Tighten, will need to pull the ball in the electromagnet. Will be equipped with one end of the rectangular perpendicular to the height of the drop bar on the scale scale, through the subtle movement, so that the lower End of the ball with the height scale height perpendicular to the scale, and then tighten the fixed handle.
3. Start the test, press the drop button, the ball free fall, the impact of the test, according to the needs of customers can repeat the test and replacement of steel ball test or product testing, this time should be recorded every time the Test results.
Details Display
| Technical Parameter | |
| impact height range | 0-2000MM adjustable |
| Control mode. | Electromagnetic control falls, single impact |
| sample size | 210*210*25MM |
| test height | can be arbitrarily set to adjust to fall at a certain height |
| Control box | Separate electromagnets are installed from the bottom |
| the volume | 450 * 450 * 2300MM |
| power supply | 220V 50Hz |
| steel ball specifications: | 112g 225g 357g 533g 1041g 2280g (optional one) |
| weight about | 36KG |
| power | 0.5KW |
Calculation formula; E=mgh
M refers to the quality of the ball (kg)
G=9.8
H refers to the drop height (m)
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
1. Pre-service
24 Hours online service for your consult.
Help choose right model,and a series of service,person,advise.
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
4.Commitment
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
5.Good Packaging
Good Packaging: Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
2. The package will be shipped by DHL/Fedex/TNT/EMS/UPS/China post/EF-Express/Special line, as you have chose in the order.
If you encounter with any problems during the testing process,we promise providing urgent guidence and after-sales sevice within 48 hours and solution providing within 3 working days. If customers require on-site service, the transport and travel expense shall be responsible for the cost.
